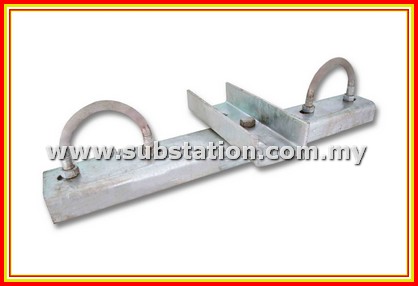

HV Dead End Clamp Bracket – Double Circuit

Click Image to Enlarge


Code
DSSB-ABC/HV/DECB-D

Sirim Tested :-

Able to withstand a minimum breaking

load of 62kN for 1 minute

Description

  • To anchor two (2) hv dead-end clamps on 10m-19-5kN spun concrete distribution or section poles or terminal pole.
  • Capable of withstanding a minimum breaking load of 62kN for 1 minute or 31kN per circuit for 1 minute.

Main Applications:-

To secure two Medium Voltage (MV )

Dead End Clamps ( DEC ) on a :-

           a) Spun Concrete Terminal Poles.

           b) Spun Concrete Distribution or Section poles.

           c) Angled Poles.
